Export Templates for your Corporate Design

This post describes how you can easily use Export Templates with biExport for SAP Analytics Cloud

  • to create exports in your Corporate Design
  • to fulfil special layout requirements e.g. for Management Presentations or Marketing Presentations

In the following, I will describe

  • how you create Export Templates
  • how you upload them to the biExport Service
  • how you can reference them for your exports

How to create Export Templates

Export Templates are just regular Word, PowerPoint or Excel documents, which contain Export Placeholders that can be interpreted by the biExport Service.

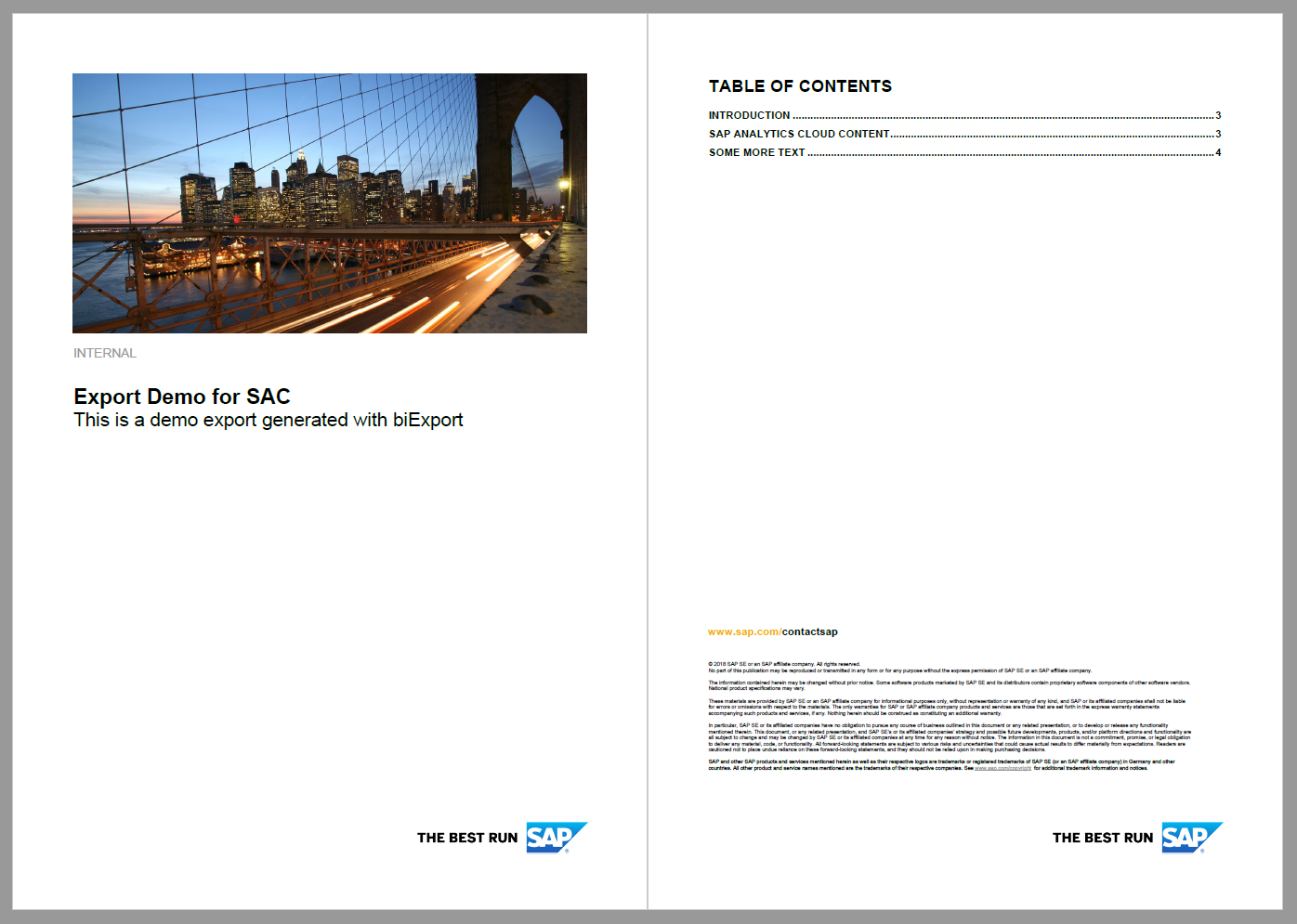

These documents can even be used as Export Templates for PDF exports!

/mimes/SAC_Screenshots/ExportPDFTemplate.PNG

Supported file formats & elements

biExport supports all common file formats:

  • For PowerPoint: PPT(X), PPTM, POT(X), POTM, PPS(X), PPTM
  • For Word: DOC(X), DOCM, DOT(X), DOTM
  • For Excel: XLS(X), XLSM, XLT(X), XLM

Within the documents you can use all elements and objects that are supported by Microsoft Office:

  • For PowerPoint: Slide Master, images, shapes, tables, text boxes, etc.
  • For Word: TOC, headers, footers, headings, images, tables, section definitions etc.
  • For Excel: multiple sheets, cell definitions, formulas, etc.

This way you can effortlessly create high quality templates for your export!

In order to use the document with biExport, you simply add Export Placeholders to the document, which can be replaced by the biExport Service.

PowerPoint Placeholders

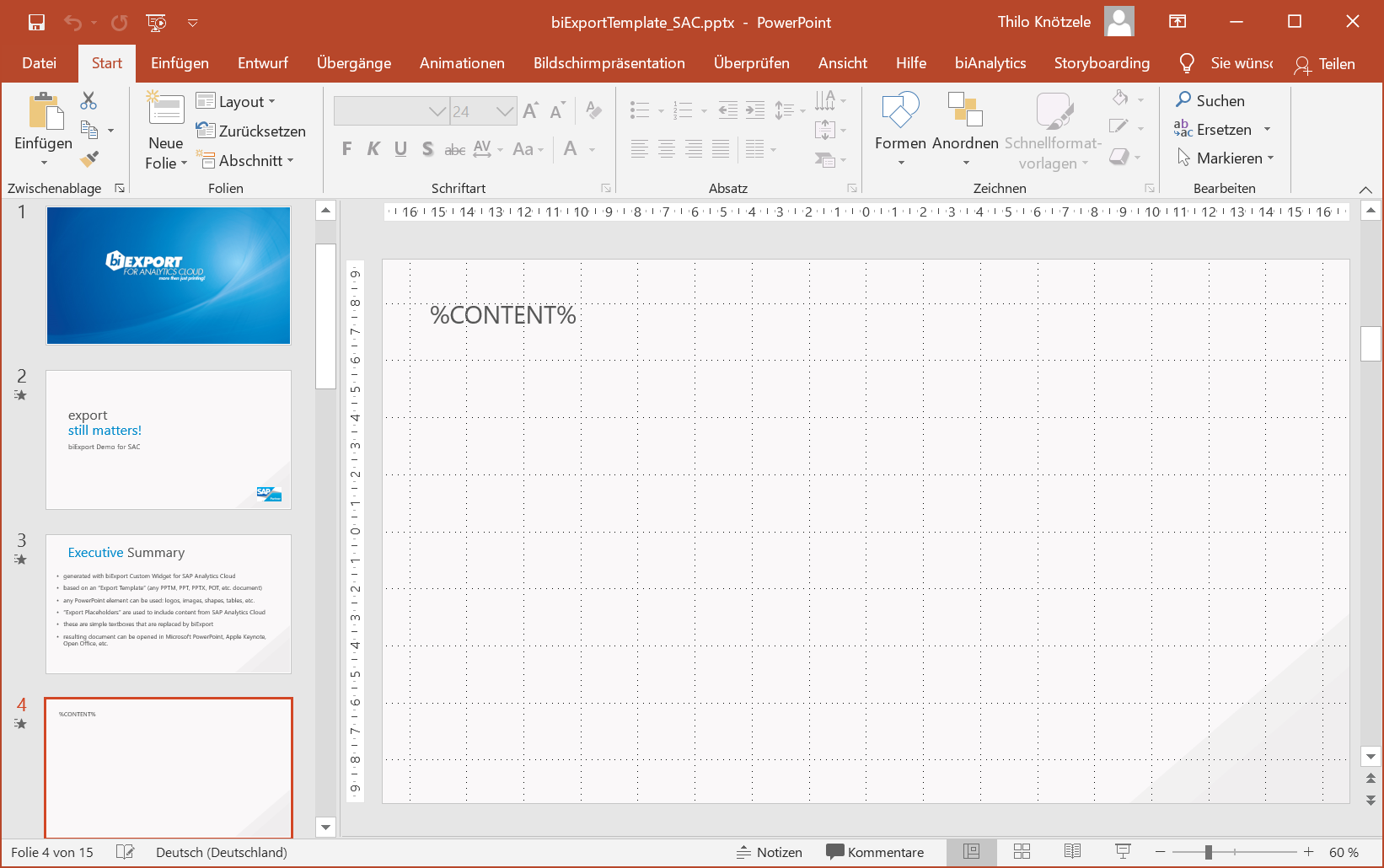

You create an Export Placeholder in PowerPoint as follows:

  1. Insert a textbox
  2. Type in the placeholder name surrounded by "%"

/mimes/SAC_Screenshots/ExportTemplatePPT_1.PNG

Word Placeholders

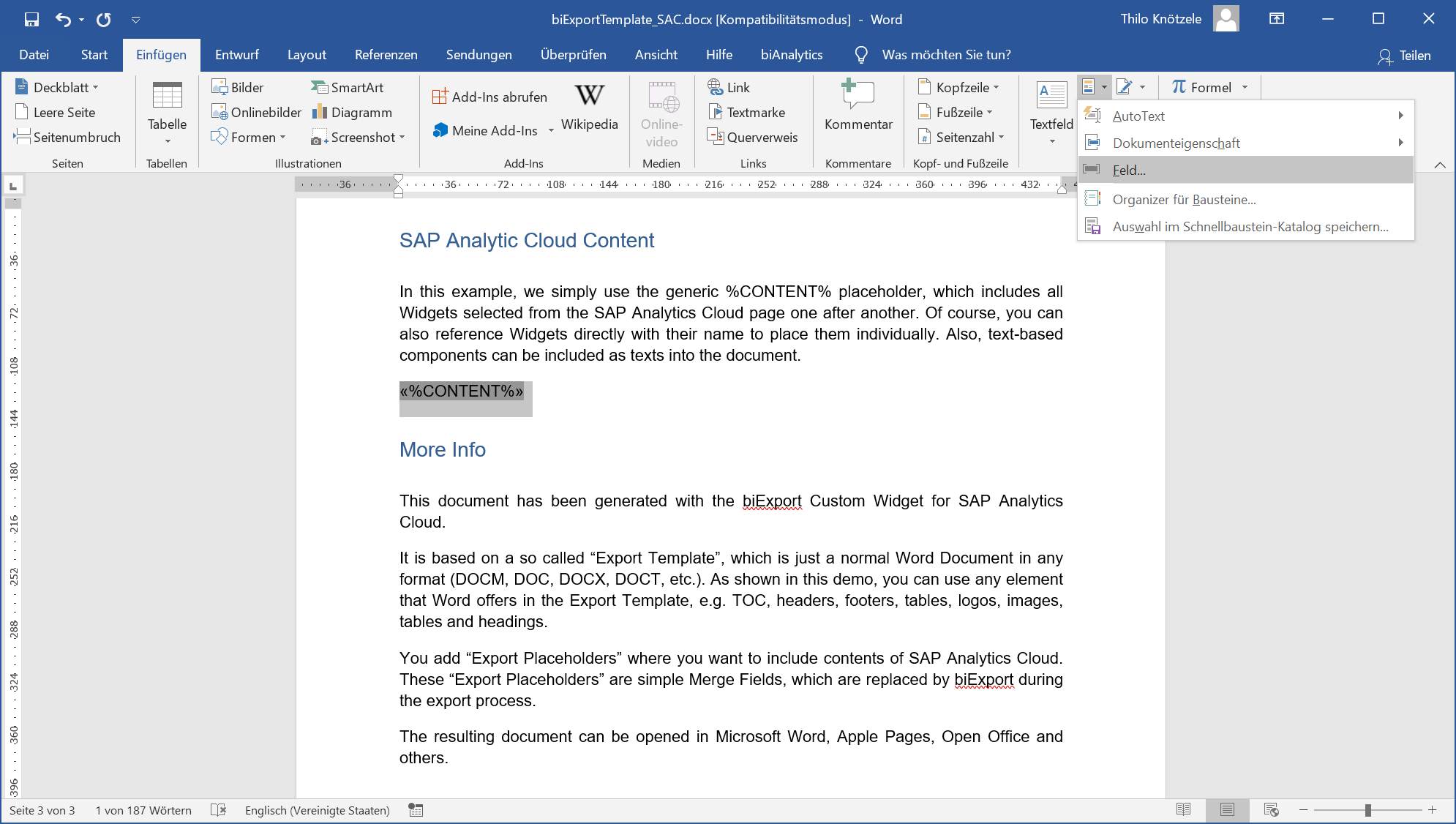

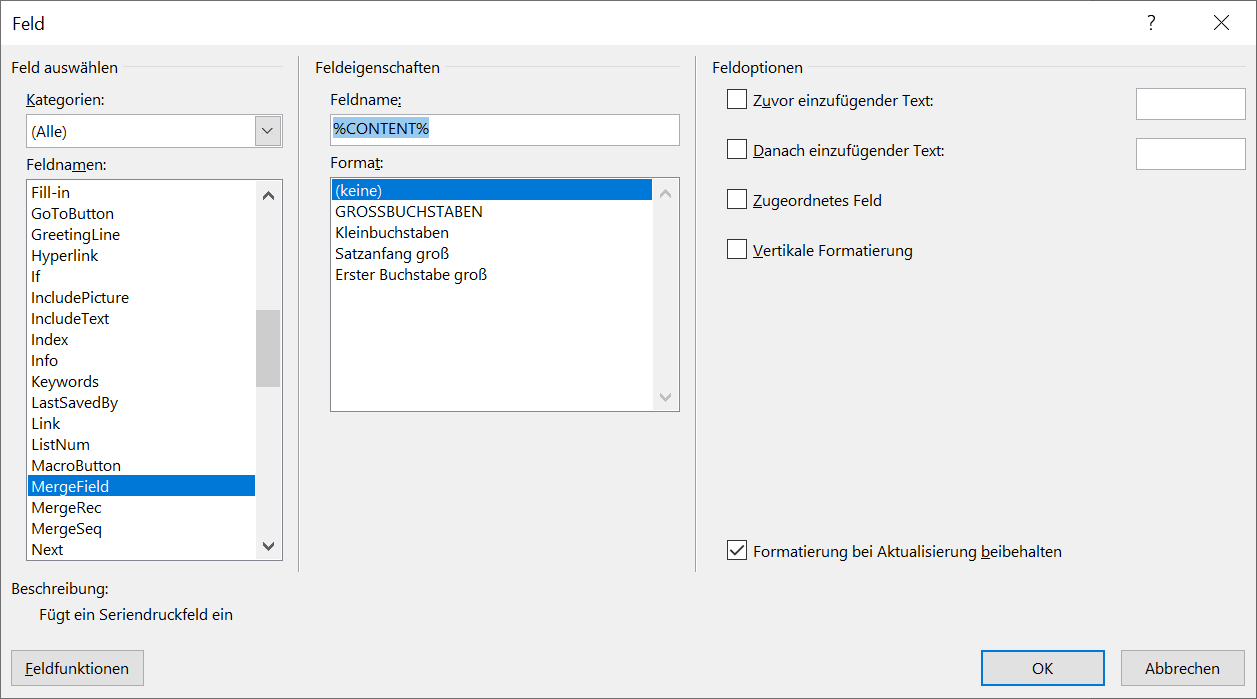

You create an Export Placeholder in Word as a Merge Field:

  1. Navigate to the menu function “Insert”
  2. Choose “Quick Parts”
  3. Choose “Field” to open the “Field” dialogue
  4. Choose “Merge Field” from the list to the left
  5. Click on the input box “Field name” under “Field properties”
  6. Type in the placeholder name surrounded by “%”

/mimes/SAC_Screenshots/ExportTemplateDOC_1.PNG

/mimes/SAC_Screenshots/ExportTemplateDOC_2.PNG

Alternatively, also in Word you can insert a text box as an Export Placeholder.

Excel Placeholders

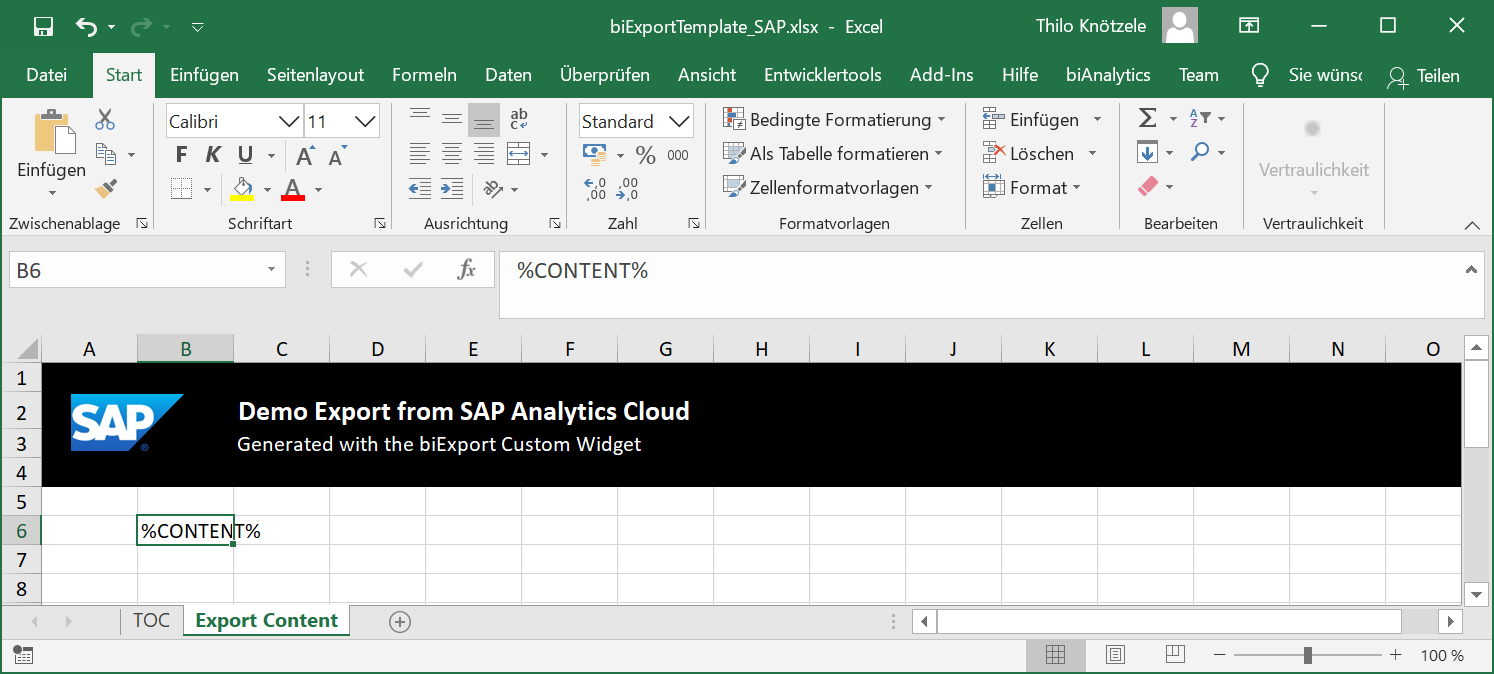

You create a placeholder in Excel simply as follows:

  1. Select a cell
  2. Type in the placeholder name surrounded by “%”

/mimes/SAC_Screenshots/ExportTemplateXLS_1.PNG

Generic Placeholders & Templates

The easiest way to export is with a “Generic Template”. This is an Export Template that can be used for all your analytical applications without changes. In a generic template, you only type in CONTENT as placeholder name, surrounded by "%".

This means that all “content”, which is provided by the analytical application, is placed at the position of the placeholder. The “content” is selected via the “Visual Components” property in the biExport Widget or in the “Select Components” user dialogue.

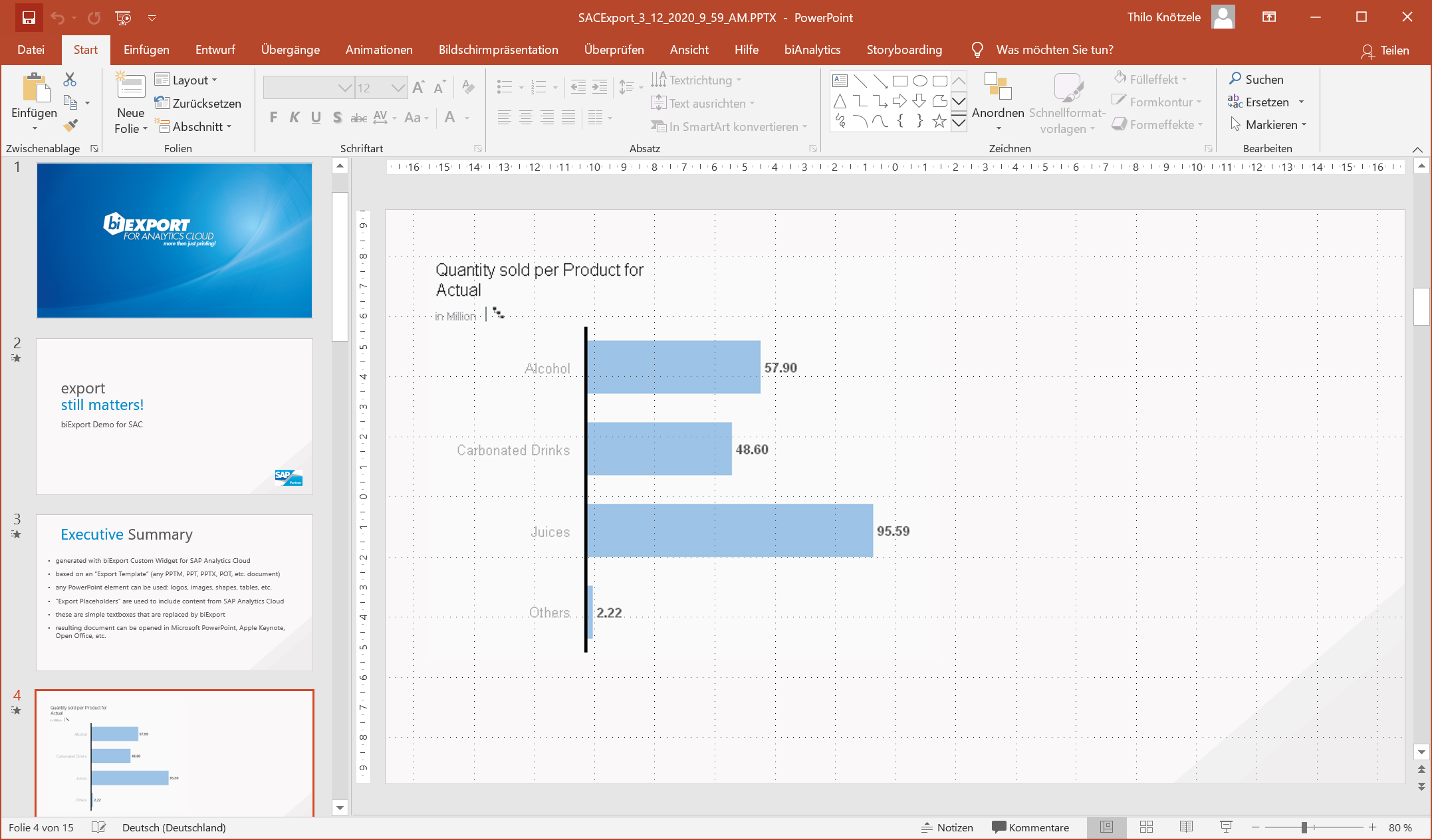

For PowerPoint Exports, either all selected widgets keep their relative sizes and positions and are placed into the same placeholder, or the slide holding the placeholder is repeated for each widget. This is controlled via the “Separate Slides” property in the biExport Widget:

/mimes/SAC_Screenshots/ExportPPT_1.PNG

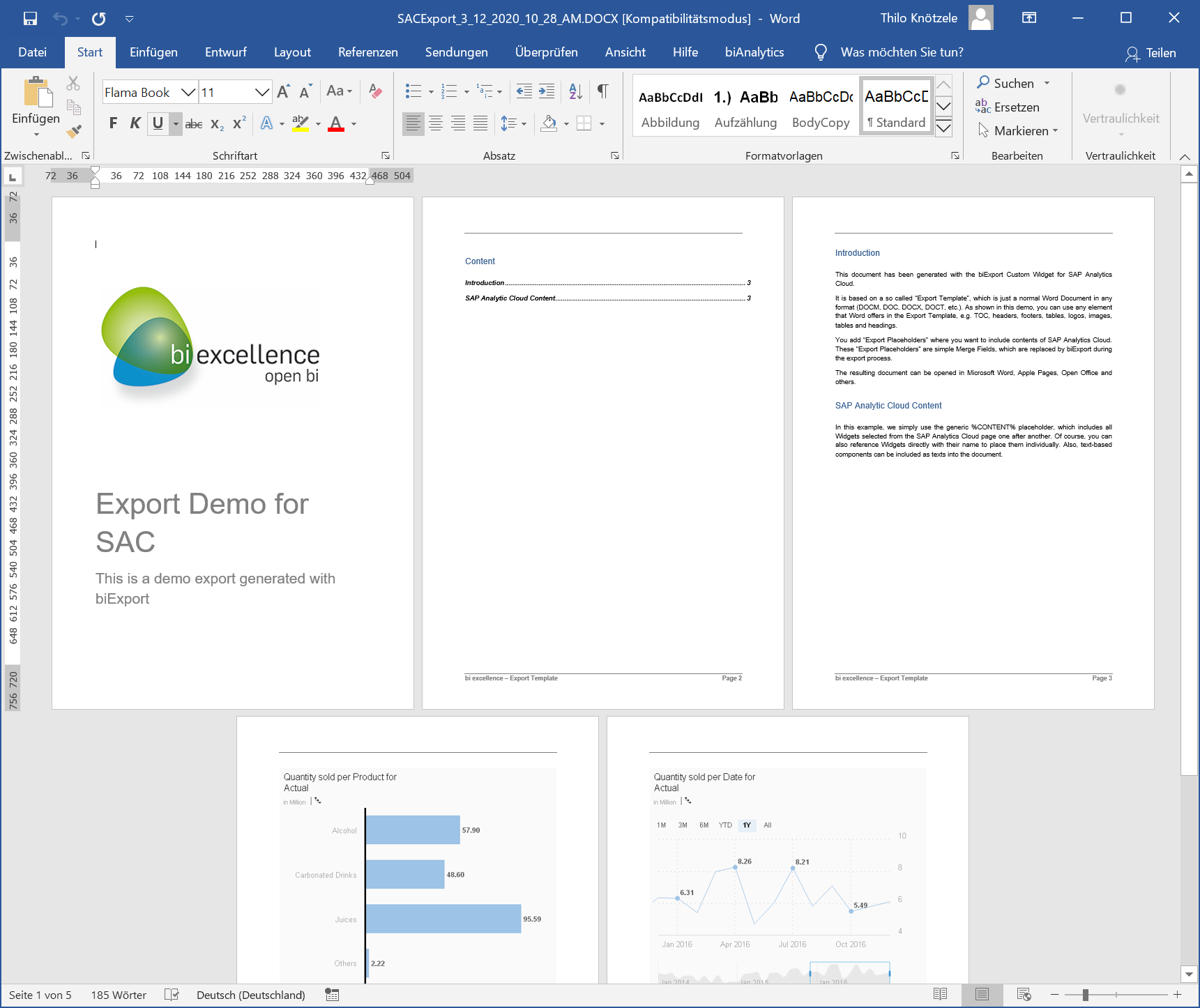

For Word Exports all selected widgets are placed after each other:

/mimes/SAC_Screenshots/ExportDOC_1.PNG

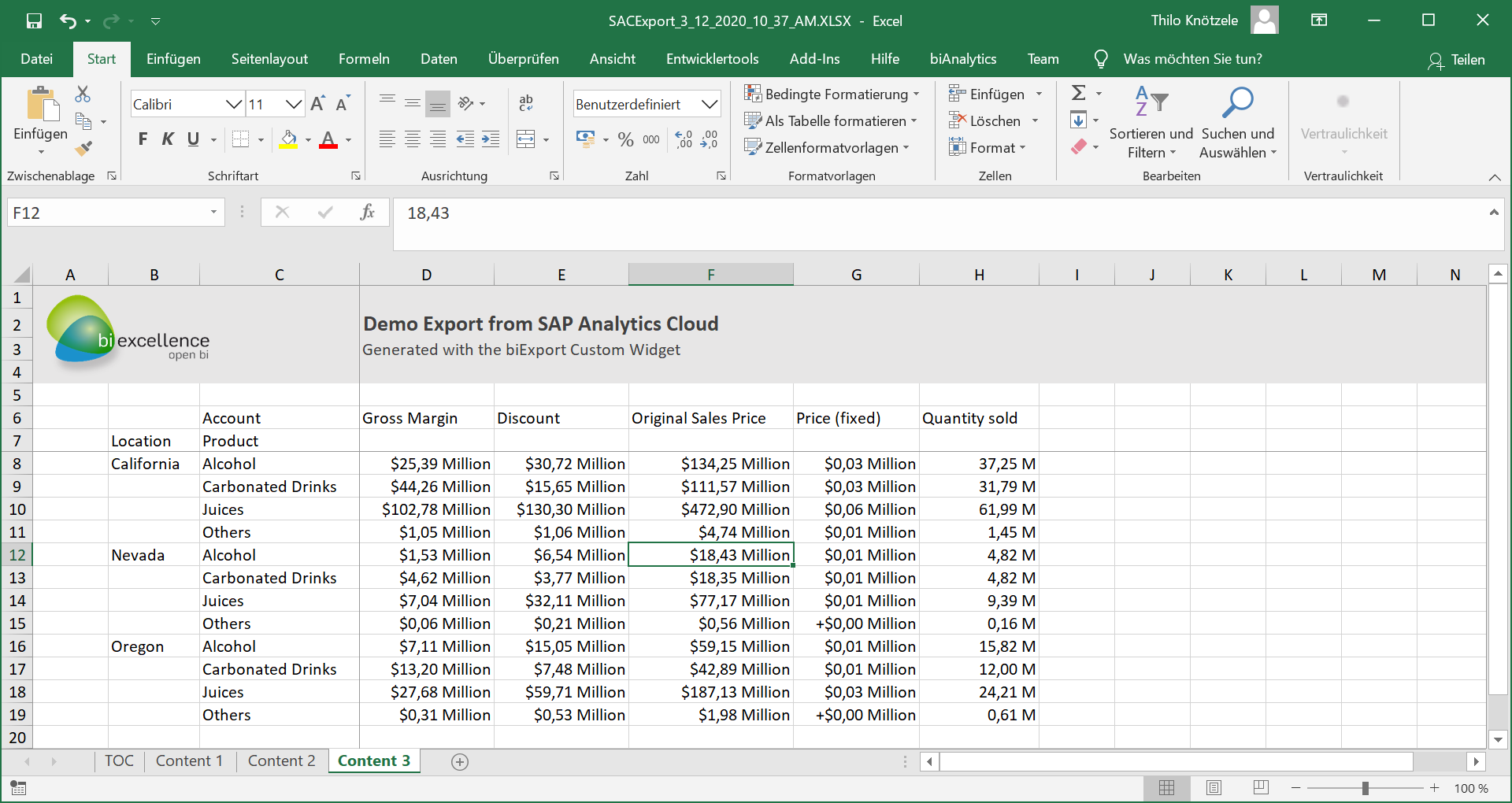

For Excel Exports the worksheet holding the CONTENT placeholder is copied for each selected widget:

/mimes/SAC_Screenshots/ExportXLS_1.PNG

Special Templates

The drawback of "Generic Templates" is that the export result certainly will require some rework and enhancements. In case you want to create reoccurring exports, such as:

  • Monthly briefing books
  • Management presentations
  • Marketing presentations

... users usually have elaborated requirements on these documents. At the same time, you certainly do not want your end users to have to do the same rework multiple times.

A “Special Template” is a document that is designed to fit the requirements for exactly one export scenario. You can

  • Include all static elements and texts for this special scenario
  • Choose a widget’s exact place in the document
  • Layout widgets next to each other on the same page or slide

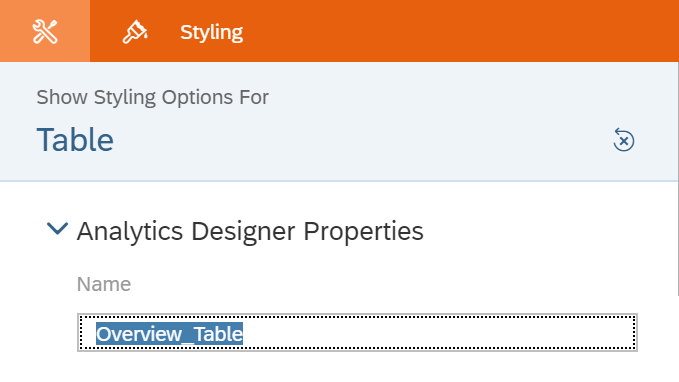

To reference a Widget directly in the Expot Placeholder, you look up its name in Analytics Designer...

/mimes/SAC_Screenshots/SpecialPlaceholder_1.PNG

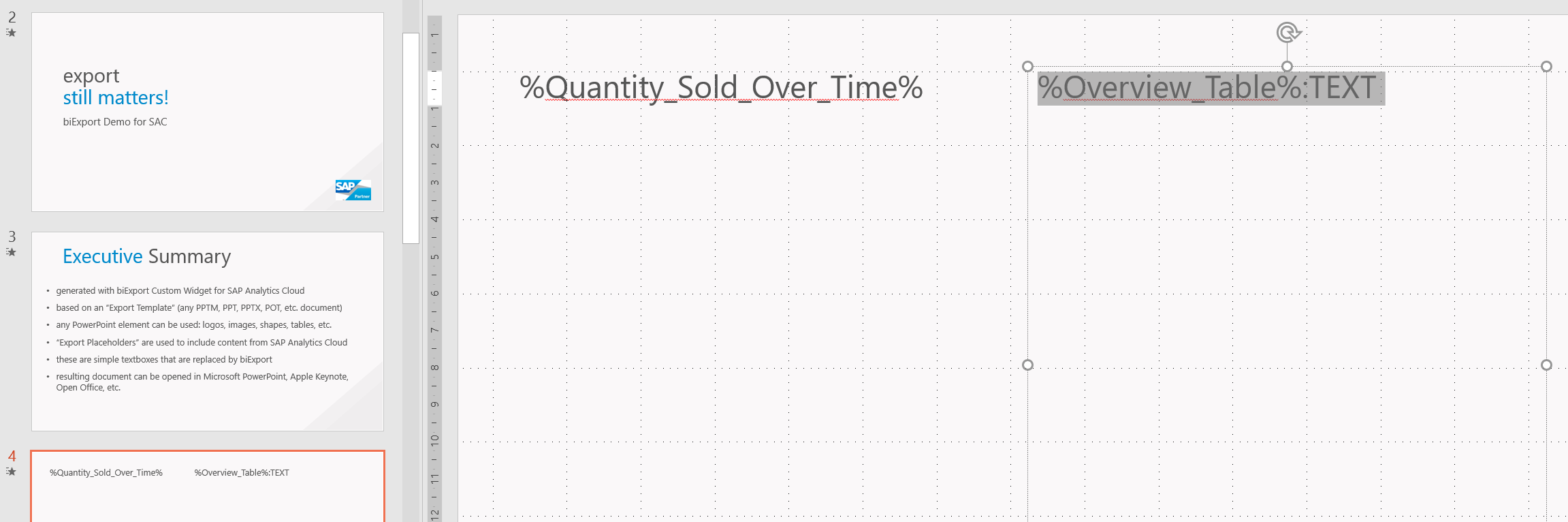

... and you type it in to the Export Placeholder:

/mimes/SAC_Screenshots/SpecialPlaceholder_2.PNG

Control rendering of the Widget

By default, biExport always creates images of the Widgets. You can also control how the Widget is rendered into the export document. This is done with Suffixes to the placeholder.

Suffix
Description
Suffix
%id%:TEXT
Description
Export a Widget as editable text and use the Widget's formatting.
Can be used e.g. with tables, text and input fields, dropdown boxes and data-point charts
Suffix
%id%:VALUE
Description
Export a Widget as editable text and use the placeholder's formatting
Can be used e.g. with tables, text and input fields, dropdown boxes and data-point charts
Suffix
%id%:NATIVE
Description
Export an SAC Chart as native Office chart
(see full instructions here).
Suffix
%id%:TEXT{font-size:6px}
Description
Export a Widget as editable text, use the Widget's formatting, but adjust the font size
Suffix
%id%:TEXT[cXr]
Description
Export a Table Widget into several editable tables with a split after "c" columns and "r" rows
Suffix
%id%:IMAGE[cXr]
Description
Export a Table Widget into several images with a split after "c" columns and "r" rows
Suffix
%id%:IMAGE[npx]
Description
Export a Widget into several images with a split after "n" pixels
Suffix
%id%:VALUE{formatAsTable:myTableFormat}
Description
Export a Table Widget widget as editable text and use a custom table style created in the export document
Suffix
%id%:VALUE{adjustDataRange:false}
Description
Export a Table Widget into the Data Worksheet of an Office Chart. The data range of the chart is either automatically adjusted to the result set of the table (default), or kept as defined ({adjustDataRange:false})

The Export Service also allows to render Widgets conditionally depending on certain report ids or URL parameters:

Several conditions can be provided separated by ";".

Upload Export Templates

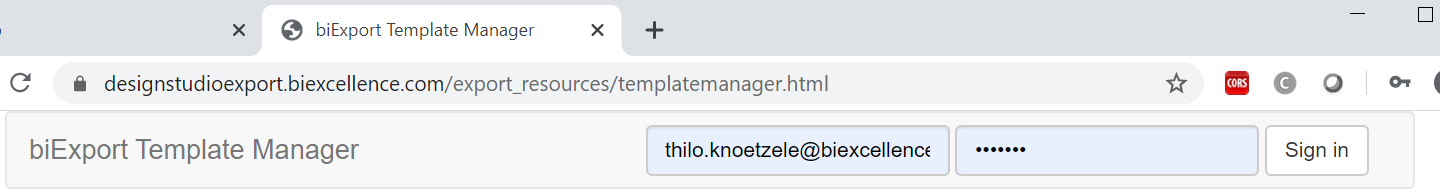

To upload your Export Template to the biExport service, open the following URL in your web client: https://designstudioexport.biexcellence.com/export_resources/templatemanager.html

If you are using an on-premise installation of the biExport service, simply replace “designstudioexport.biexcellence.com” with the host name of your export service.

You are asked for your user credentials – if you have not done yet, visit www.biexcellence.com/register and use them for the login.

/mimes/SAC_Screenshots/TemplateManager_1.PNG

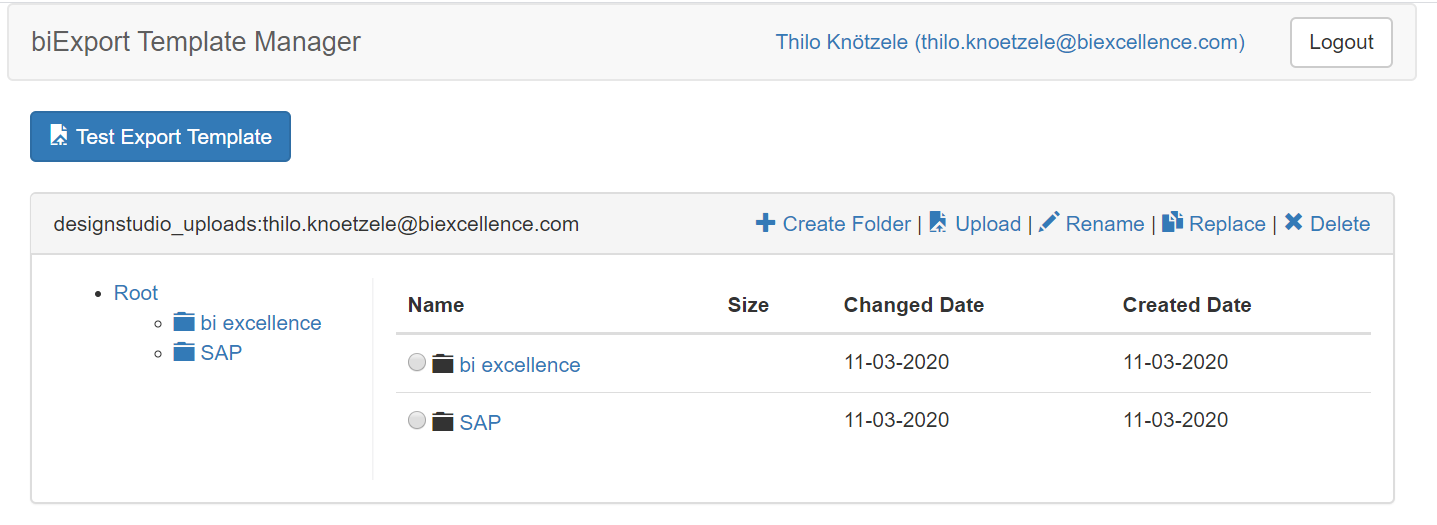

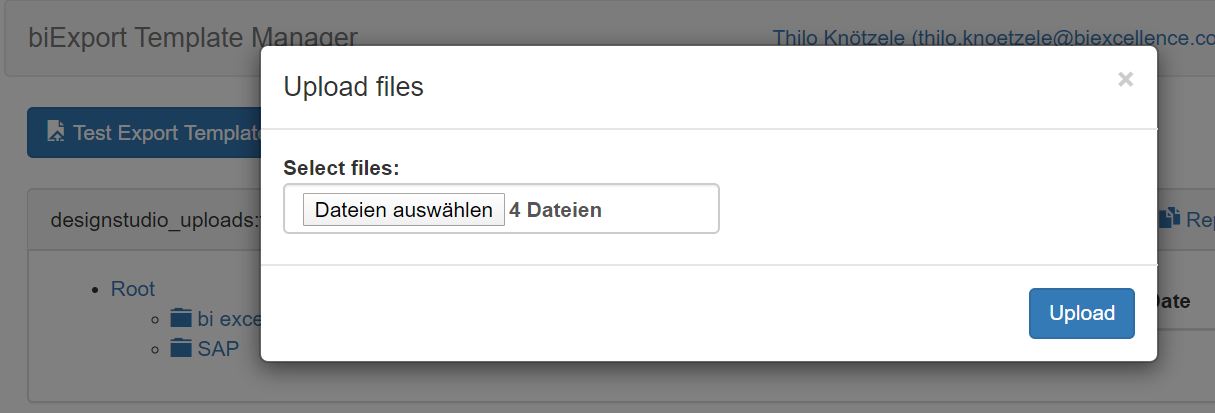

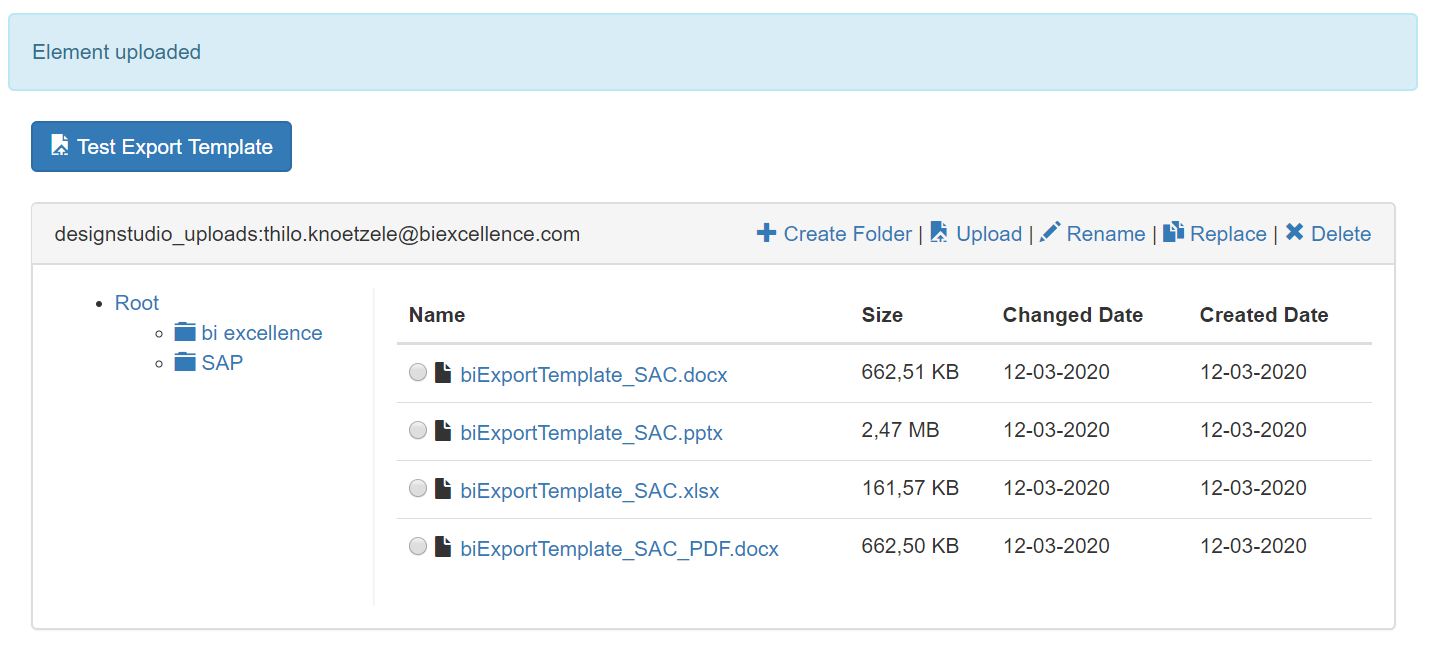

You will be forwarded to a dropbox like account, which allows you to upload templates, rename and organize them in folders.

/mimes/SAC_Screenshots/TemplateManager_2.PNG

/mimes/SAC_Screenshots/TemplateManager_3.PNG

/mimes/SAC_Screenshots/TemplateManager_4.PNG

Use Export Templates

Now you are almost done!

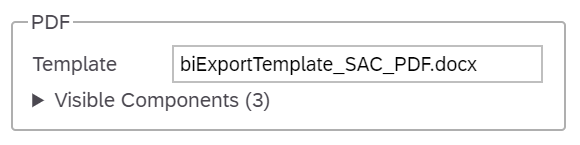

Simply enter the name of the document, which you have uploaded in the last step, in the “Template” parameter of the biExport Widget (e.g. "SAC_Template.pptx")

If you use folders, we recommend to enter the whole path including its parent folders (e.g. "bi excellence/SAC_Template.pptx").

/mimes/SAC_Screenshots/TemplatePDFProperty_1.PNG

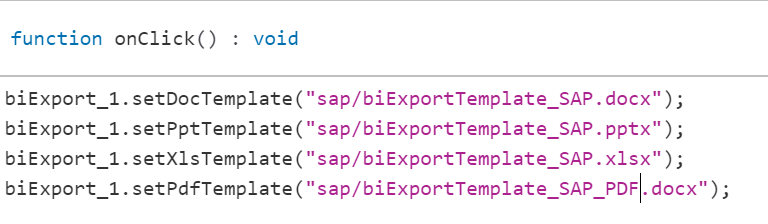

Of course, you can also use the following script functions to toggle the used template dynamically!

/mimes/SAC_Screenshots/TemplatePDFProperty_4.PNG
